Keysight Mobile Meter

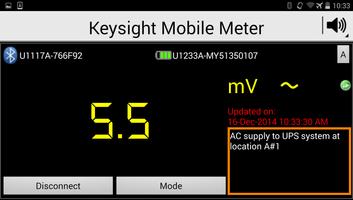

Keysight Technologies Remote Link solution improves your work efficiency and safety. Connect wirelessly to your Keysight U1200 series handheld digital multimeters or clamp meters via Bluetooth® wireless technology. The Keysight Mobile Meter enables you to view measurements from up to three Keysight handheld meters, extending your reach wirelessly to multiple points from a single location. Make measurements from a safe distance and eliminate the need to walk back-and-forth between measured points and control panel during trouble shooting. To further enhance safety during the probing of high-voltage circuits, the Keysight Mobile Meter includes a “voice-out” capability. This feature provides an audible output of your handheld meter readings through the text-to-speech engine in the Android device so that you can concentrate on the measurement task.

Key features:

- Select either one-, two- or three-meter mode to connect with Keysight U1200 series handheld meters.

- Continuously scan measurements for remote monitoring purposes.

- Audible output of DMM readings through Android’s text-to-speech engine.

- Monitor measurements through a Web browser running on a PC or tablet within the same network.

- Assign labels the measurements.

- Identify the connected multimeter(s) with just a press of a button.

- Remotely change the measurement modes of connected multimeters.

- Share your measurements as text or image or both via e-mail or other installed sharing apps such as Facebook, Twitter etc.

For more information, visit www.keysight.com/find/hhgowireless

System Requirements

- Any of the Keysight U1200 series handheld digital multimeters* or clamp meter

- U1117A/U1177A IR-Bluetooth adapter

- Any Android devices with Bluetooth connectivity**

- Android Versions: 2.2, 2.3, 3.1, 3.2, 4.0, 4.1, 4.2***, 4.3, 4.4

Notes:

*U1240 Series requires additional U1179A IR bracket to enable connection with the U1177A Bluetooth adapter.

**Certain devices are able to connect up to two multimeters only (for eg: the Samsung Galaxy S/S2 and HTC Thunderbolt smartphones)

***Android devices’ hardware performance may impact the responsiveness of the Mobile Meter.

The following Android devices are tested and found compatible with Keysight Mobile Meter. However, the devices are not limited to the list below.

Android smartphones:

- Google Nexus One (Android 2.3)

- HTC Sensation Z710e (Android 2.3)

- Samsung Galaxy Nexus (Android 4.1)

- Asus Garmin Phone M10 (Android 2.2)

- Samsung Galaxy Note (Android 4.0)

- Samsung Galaxy S3 (Android 4.0)

- HTC Desire S (Android 2.3, English version)

- Motorola Rarz (Android 4.0)

- Hua Wei Ideos X3 U8510 (Android 2.3)

- Samsung Note 3 (Android 4.4)

- Samsung Galxy 5 (Android 4.4)

Android Tablets:

- Google Nexus 7 (Android 4.2)

- Asus EeePad Transformer (Android 4.0)

- Samsung Galaxy Tab GT-P1010 (Android 2.2)

- Samsung Galaxy Tab 7 Plus, 7.7 (Android 3.1/3.2)

- Samsung Galaxy Tab 2 7” (Android 4.0)

What's New in the Latest Version Version 2.2.0

This app no longer being supported. Download "Keysight Meter Logger" now.

Keysight Meter Logger improves your productivity and safety by allowing you to stream measurements in real time from up to 3 Keysight handheld digital multimeters and clamp meters wirelessly:
- Real time streaming of measurement data via Bluetooth
- View your continuous and manually logged data in tabular or graphical format
- View Min/Max/Average calculation
- Retrieve and view previously recorded data
